Pencil+ 4 Line / Reduction Settings¶
Reduction Settings¶
This section makes it possible to adjust reduction settings intuitively using a curve interface. Reduction settings are used by both [Size Reduction] and [Alpha Reduction].

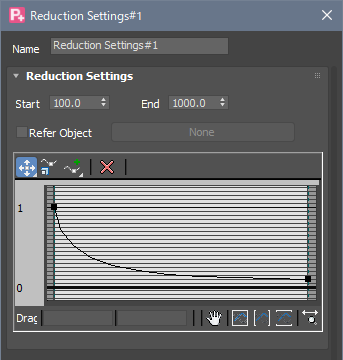

Reduction Settings¶
Set the start and end points as well as the reduction amount for the reduction settings.
Start¶
Define the distance from the reference point at which size reduction starts.
End¶
Define the distance from the reference point at which size reduction ends.
|
|
|---|---|
| Size Reduction On Refer Object Off |
Alpha Reduction On Refer Object Off |
Refer Object¶
Use the selected object as the reference point for reduction. When the check is off, the distance to the camera is used. When the check is on, the distance to the specified object is used.
|
|
|---|---|
| Size Reduction On Refer Object On |
Alpha Reduction On Refer Object On |
Curve¶
Use the curve to adjust reduction amount as a function of distance.
