Pencil+ 4 Line Instructions

We explain how to draw lines on objects using Pencil+ 4 Line.

1. Change the renderer to [Scanline Renderer].

2. Create an object for drawing lines.
   In this example, we use the [Teapot] object from the Standard Primitives.

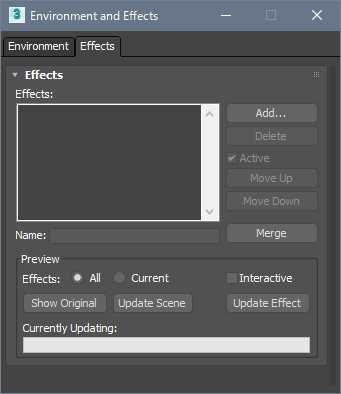

3. Open the [Environment and Effects] window.
   Press the [8] key to open the [Environment and Effects] window, then show the Effects tab.



4. Add a [Pencil+ 4 Line]

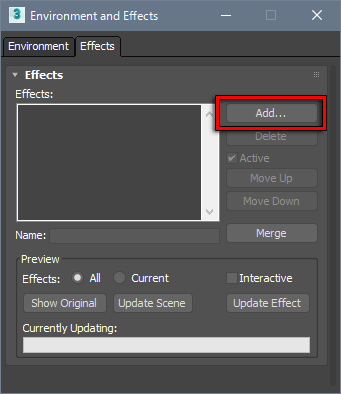

   Click [Add...], select [Pencil+ 4 Line] from the [Add Effect] dialog and click [OK].





5. Add a [Line Set].

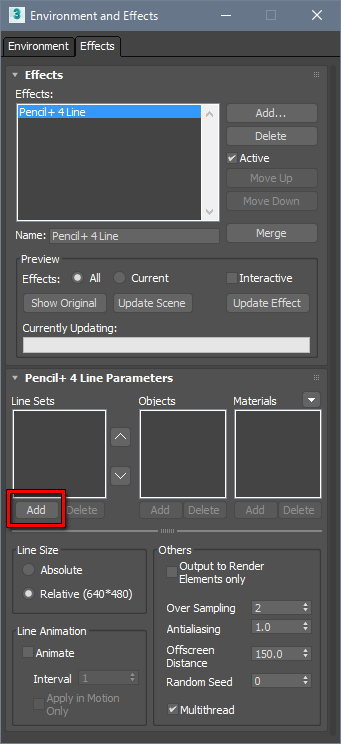

   Click [Add] at the bottom of the Line Sets list in the Pencil+ 4 Line Parameters section.



6. Add the object to the Line Set.

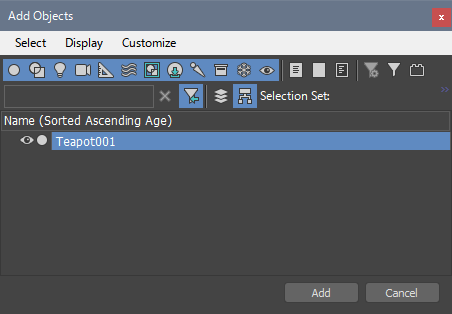

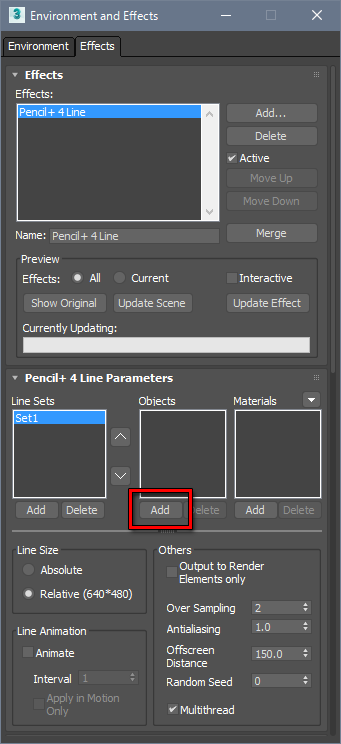

   Click [Add] at the bottom of the Objects list to show the [Add Objects] dialog.
   Select the teapot object in the list and click [Add].

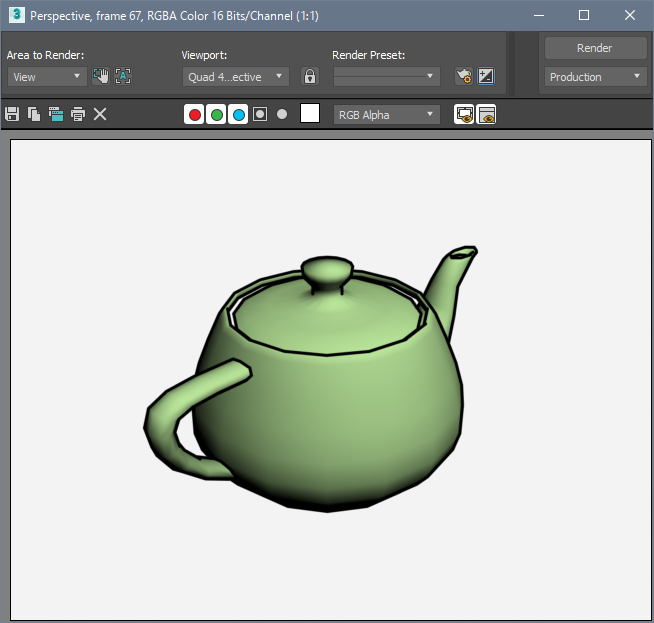

7. Press the [F9] key to render. The Pencil+ 4 Line is rendered.

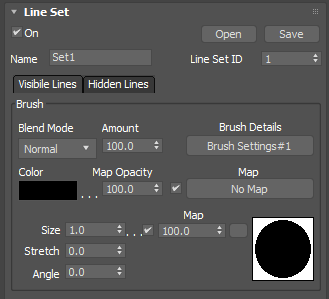

   Adjust the color and size of the Line as you like in the Brush area of the Line Set section.
