Pencil+ 4 Reflection/Refraction Map Instructions

We explain how to use Pencil+ 4 Reflection/Refraction Maps to create mirror-like reflections of Pencil+ 4 Lines.

1. Create a scene using Pencil+ 4 Lines.

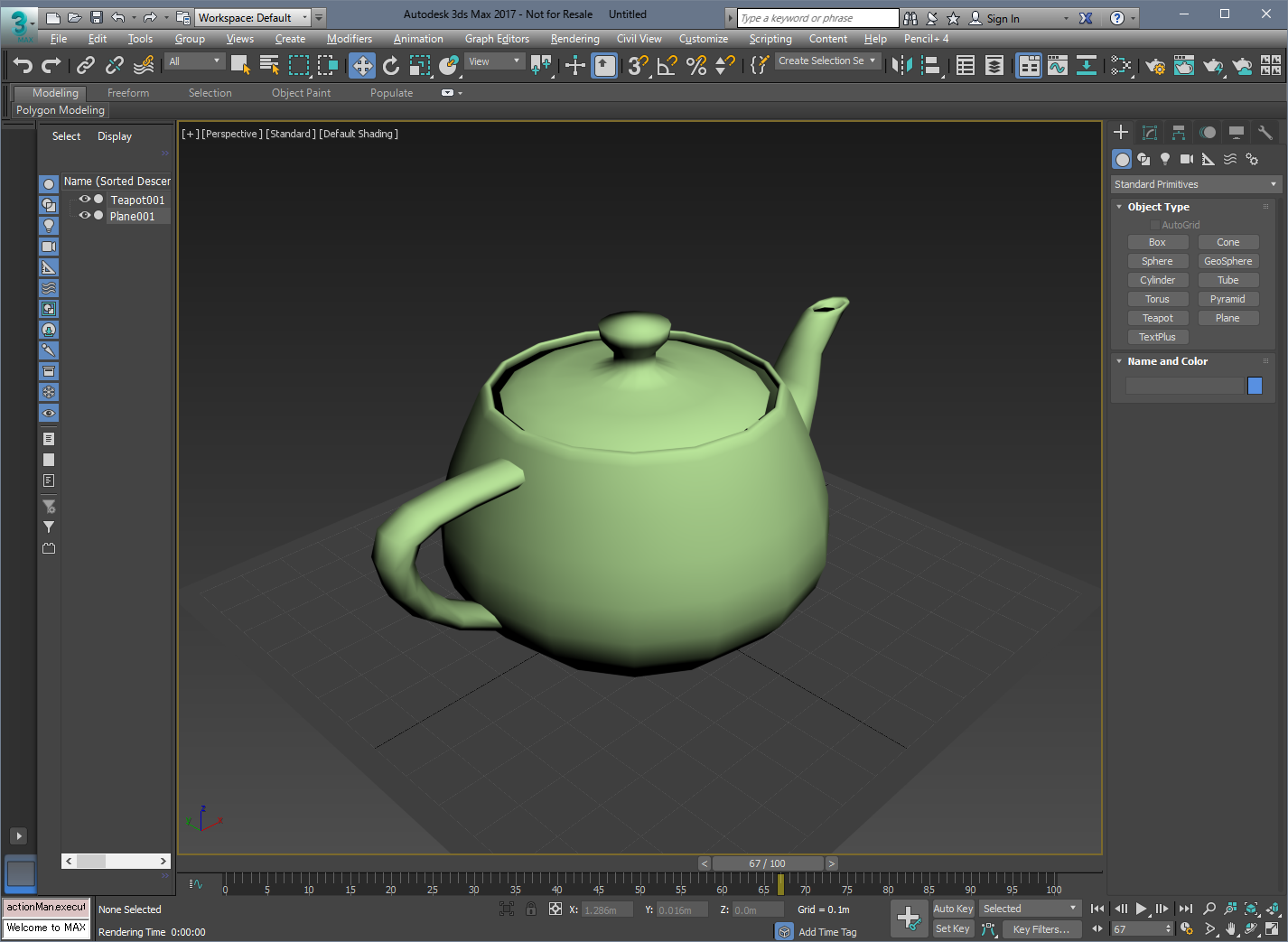

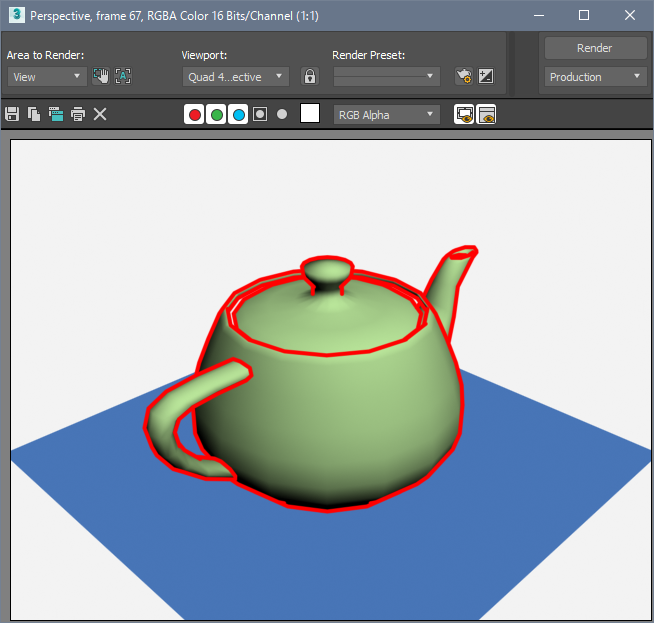

   In this example, we create a teapot and plane objects and set a Pencil+ 4 Line to the teapot.





2. Create a Material for the reflection.

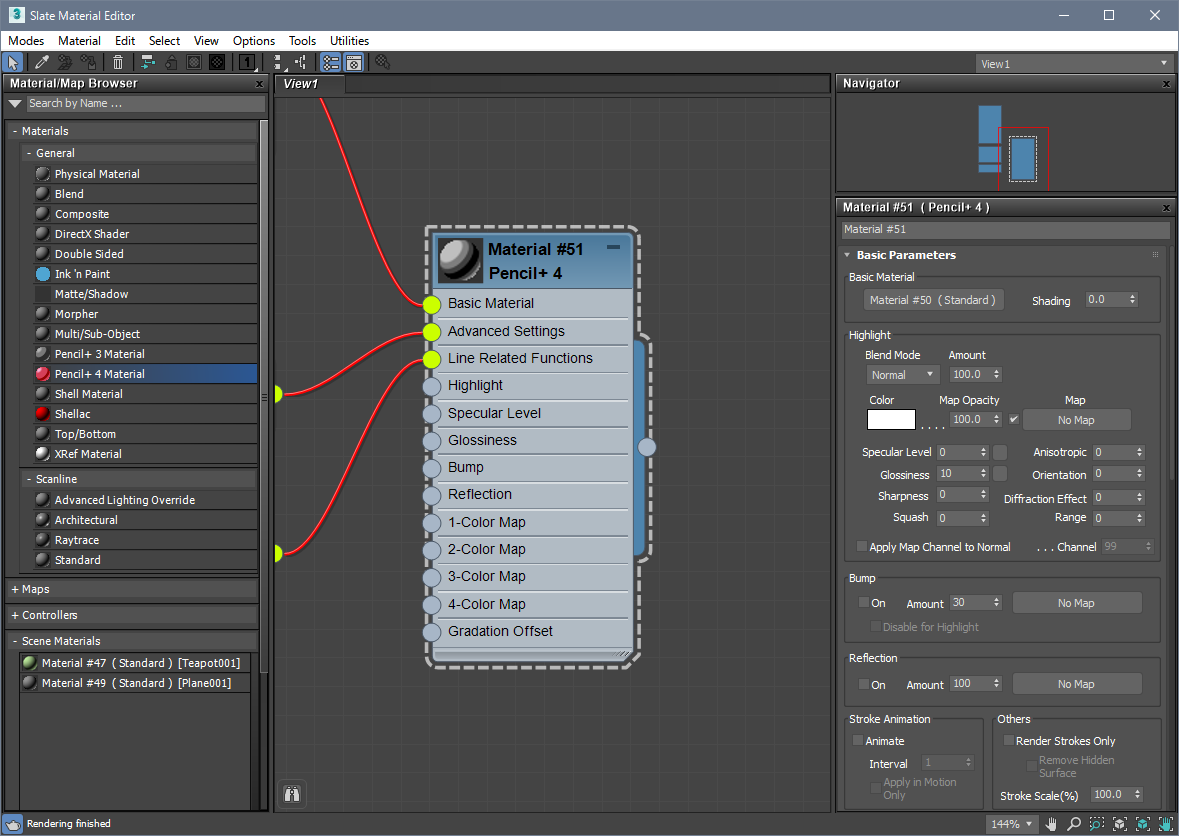

   Press the [M] key to open the Material Editor and create a Pencil+ 4 Material.



3. Add a Pencil+ 4 Reflection/Refraction Map.

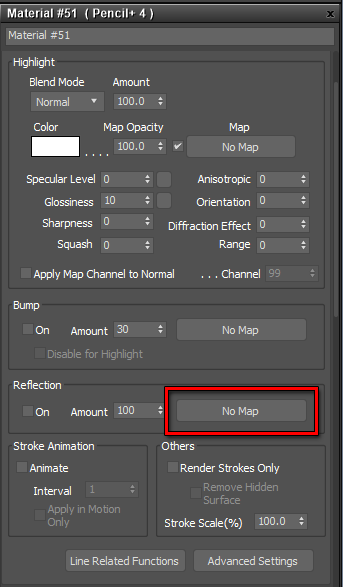

   Click the map button in the Reflection area of the Pencil+ 4 Material to show the [Material/Map Browser].

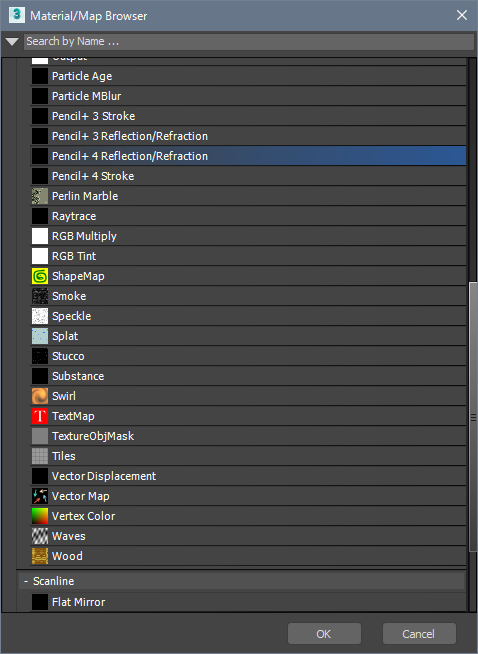

   Select [Pencil+ 4 Reflection/Refraction] and click [OK].

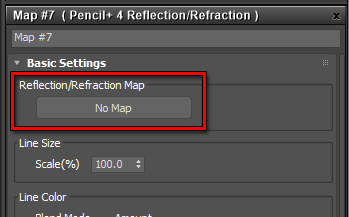

4. Set the value of [Reflection/Refraction Map] to [Flat Mirror] under Basic Settings of the Reflection/Refraction Map.
   Right-click the [Reflection/Refraction Map] button and click [Clear] to clear the default Reflection/Refraction Map.

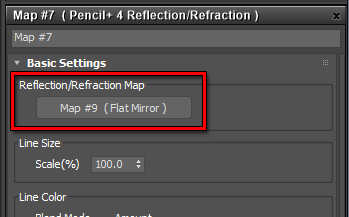

   Next, we drag and drop [Flat Mirror] from the [Material Map Browser] to the [Reflection/Refraction Map] to set it.







5. Apply the Material we created to the plane object.

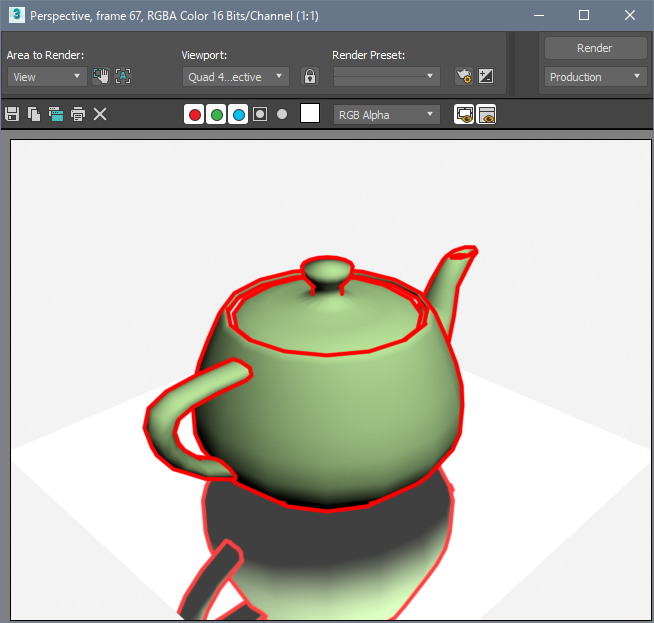

6. Press the [F9] key to render. The Pencil+ 4 Line is reflected by the plane object.
