Pencil+ 4 Select Edge Instructions

We explain how to use Pencil+ 4 Select Edge to draw Lines on specific edges.

1. Create a scene using Pencil+ 4 Lines.

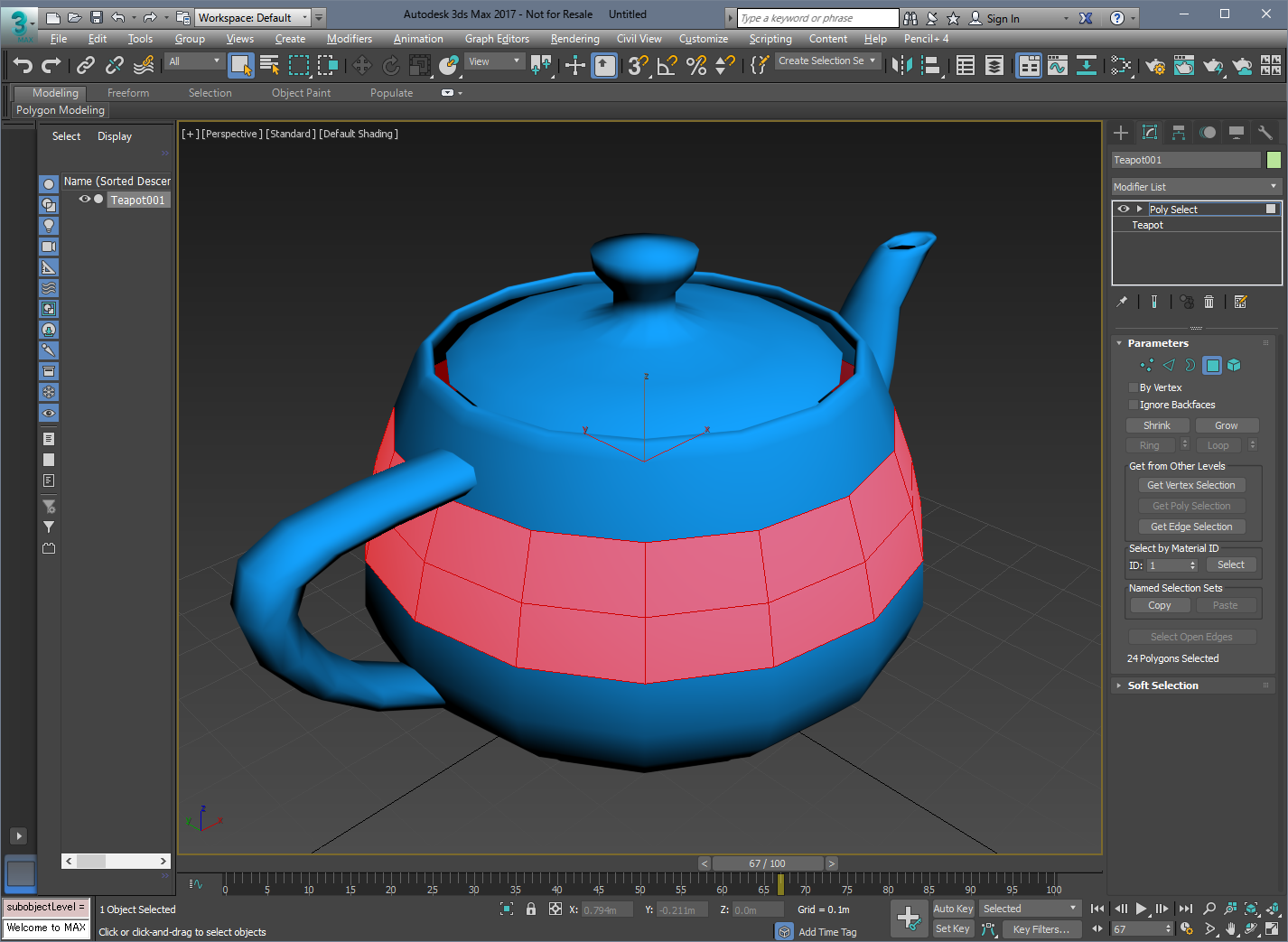

2. Add a [Poly Select] modifier and select the target polygon parts.
   With the target object selected, select [Poly Select] in the Modifier list of the Modify panel. Next, use [Vertex], [Edge] or [Polygon] to select the parts of the polygon where you wish to draw Lines.

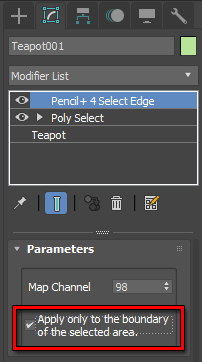

3. Add a [Pencil+ 4 Select Edge].
   Select [Pencil+ 4 Select Edge] in the Modifier List of the Modify panel. Next, check [Apply only to the boundary of the selected area.].

   Warning

   Lines might not be drawn correctly if another polygon separation modifier is added between [Poly Select] and [Pencil+ 4 Select Edge].

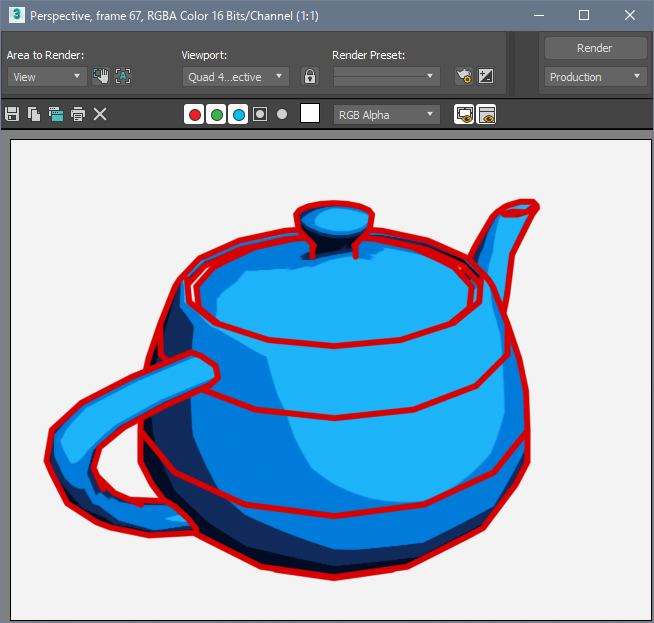

4. Press the [F9] key to render. Pencil+ 4 Lines are drawn around the selected polygon area.
