PencilViewportSetting

The PencilViewportSetting node is used to configure rendering by the Pencil+ 4 Line Viewport.

Go to the Viewport menu and click the option button on the right of [Renderer] / [Pencil+ 4 Line] to create the node.

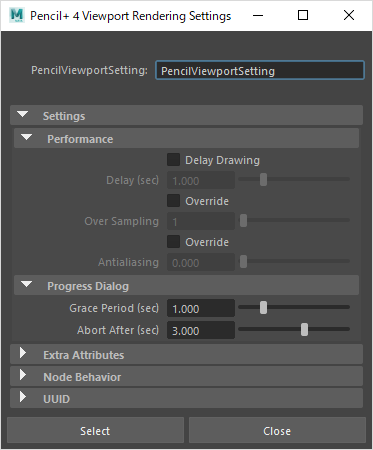

Pencil+ 4 Viewport Rendering Settings

The render settings for the Pencil+ 4 Line Viewport are saved to the PencilViewportSetting node. If there is no PencilViewportSetting node in the scene, rendering is done with the PencilLine settings.

Performance

Adjust the performance settings for the viewport. Enable [Delay Drawing] or one of the [Override] options to modify the quality of the Lines drawn on the Pencil+ 4 Line Viewport.

Delay

Specify a delay in seconds between the time when the user finishes using the viewport and the rendering of Lines. Viewport response can be improved by changing the timing for drawing Lines. Effective when drawing Lines on data with many polygons.

Over Sampling

Specify the oversampling value used by the Pencil+ 4 Line viewport. Setting a low value increases the drawing speed of the viewport.

Antialiasing

Specify the antialiasing value used by the Pencil+ 4 Line viewport. Setting a low value increases the drawing speed of the viewport.

Progress Dialog

Control the display of the Pencil+ 4 Line Progress Dialog.

Grace Period

Specify the time (in seconds) to wait before displaying the Pencil+ 4 Line Progress Dialog. When rendering takes a long time, the Progress Dialog displays progress bars showing the progress of the rendering of Pencil+ 4 Lines.

Abort After

Specify a time limit (in seconds) for rendering Pencil+ 4 Lines. If rendering takes longer than the specified time, it will be aborted. When the value is set to 0, Line rendering will never be aborted.
