Pencil+ 4 Line Renderer

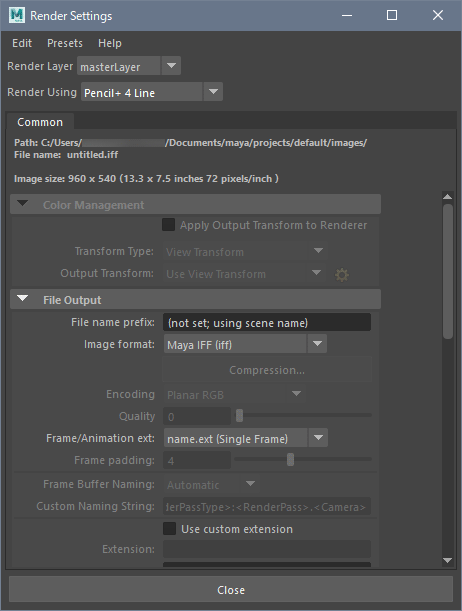

The Pencil+ 4 Line renderer is a simple renderer that only computes the Lines in the scene. It can be used to skip material computation and render only Lines. The Pencil+ 4 Line renderer renders with a white background. Render Elements functionality can also be used.

Command Line Renderer Flags¶

We provide descriptions of the command line rendering flags specific to the Pencil+ 4 Line renderer. This list can also be displayed by executing the command "render.exe -help -r pencil4line" in the command prompt window.

Flags Specific To Pencil+ 4 Line¶

`-pl:port <int>`	Set the Batch Progress Driver command port.
`-pl:rush`	For scenes without Pencil+ 4 Line settings, add simple Pencil+ 4 Line settings and render.
`-pl:reo`	Only output Render Elements.

Common Flags For The Command Line Renderer¶

The following common flags for the command line renderer can be used with the Pencil+ 4 Line renderer. Please refer to Maya's documentation for details about these flags.

General Purpose Flags	`-rd <path>` `-of <string>` `-im <filename>`
Frame Numbering Options	`-s <float>` `-e <float>` `-b <float>` `-skipExistingFrames <boolean>` `-pad <int>` `-rfs <int>` `-rfb <int>` `-fnc <int>`
Camera Options	`-cam <name>`
Resolution Options	`-x <int>` `-y <int>` `-percentRes <float>` `-ard <float>` `-par <float>`
Render Layers And Passes	`-rl <boolean\|name>`
MEL Callbacks	`-preRender <string>` `-postRender <string>` `-preLayer <string>` `-postLayer <string>` `-preFrame <string>` `-postFrame <string>`
Other Flags	`-n <int>`
