Feature Description

Pencil+ 4 Converter is a utility plugin to convert data created with Pencil+ 3 to Pencil+ 4. It can also be used to convert Standard Materials to Pencil+ 4 Materials.

Pencil+ 4 Converter¶

Setup the conversion and conversion targets here.

Pencil+ 4 Converter¶

Setup the conversion and conversion targets here.

Convert¶

Perform the conversion.

Targets¶

Set the targets for converting from Pencil+ 3 to pencil+ 4. The unchecked items will not be converted.

Material Settings¶

Setup the material conversion.

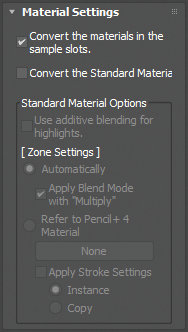

Material Settings¶

Setup the material conversion.

Convert the materials in the sample slots.¶

Enable / disable conversion of the Pencil+ 3 Materials in sample slots.

Convert the Standard Materials.¶

Enable / disable conversion of the Standard Materials. Checking this option activates the [Standard Material Options] section.

Standard Material Options¶

Setup the conversion of Standard Materials.

Use additive blending for highlights.¶

Set the Highlight [Blend Mode] to [Additive].

[Zone Settings]

Automatically¶

Refer to the Standard Materials' [Diffuse Reflection] and [Specular Reflection] to convert to Pencil+ 4 Materials. Zones are created at regular intervals.

Apply Blend Mode with "Multiply"¶

The [Blend Mode] of the Zones is converted to [Multiply]. If the Standard Materials use texture maps, checking this option will maintain rendering results close to the original after converting.

Refer to Pencil+ 4 Material¶

Refer to the settings of a [Pencil+ 4 Material] to convert Standard Materials. Use this to convert with a specific number of Zones at specific positions.

Apply Stroke Settings¶

Enable / disable the application of the [Stroke Maps] from the reference [Pencil+ 4 Material].

Instance¶

Convert the Stroke Maps as instances.

Copy¶

Convert the Stroke Maps as copies.
